Can OBD2 Scanner Read ABS Codes Why It Matters Today

Can OBD2 scanner read ABS codes is a common question for DIYers. This guide shows how to read ABS codes with an OBD2 scanner, what tools you need, and what to do next.

Key Takeaways

• Point 1: Most OBD2 scanners can read basic ABS codes, but full ABS module data needs a compatible scanner.
• Point 2: You must use the right adapter or app for full ABS support on some vehicles.
• Point 3: Reading ABS codes helps diagnose wheel sensors, hydraulic faults, and wiring issues fast.
• Point 4: Clear ABS light codes with care; fix the root cause before resetting the light.
• Point 5: Troubleshooting requires systematic checks: scan, test sensors, inspect wiring, and test the module.
• Point 6: For advanced ABS diagnostics, professional tools or a mechanic may be needed.

Introduction

This guide explains can obd2 scanner read abs codes and why it matters. You will learn step-by-step how to read ABS codes with an OBD2 scanner. You will also learn what tools to use, how to test parts, and how to troubleshoot common issues. The steps are simple. The advice is practical. You will gain confidence to diagnose ABS problems yourself.

What You Will Learn

• Which OBD2 scanners can read ABS codes.
• How to connect and scan for ABS codes.
• How to interpret ABS trouble codes.
• How to test ABS sensors and wiring.
• How to clear codes and confirm repairs.

Why Ask “Can OBD2 Scanner Read ABS Codes”

People ask can obd2 scanner read abs codes because the ABS light is scary. The ABS light means the anti-lock brake system has a fault. That fault impacts braking safety. Reading the codes narrows the cause quickly. A good scan saves time and money. It also avoids unnecessary part swaps.

Visual guide about Can OBD2 Scanner Read ABS Codes Why It Matters Today

Image source: obdcore.com

Visual guide about Can OBD2 Scanner Read ABS Codes Why It Matters Today

Image source: thumbs.dreamstime.com

Step 1: Know What an OBD2 Scanner Does

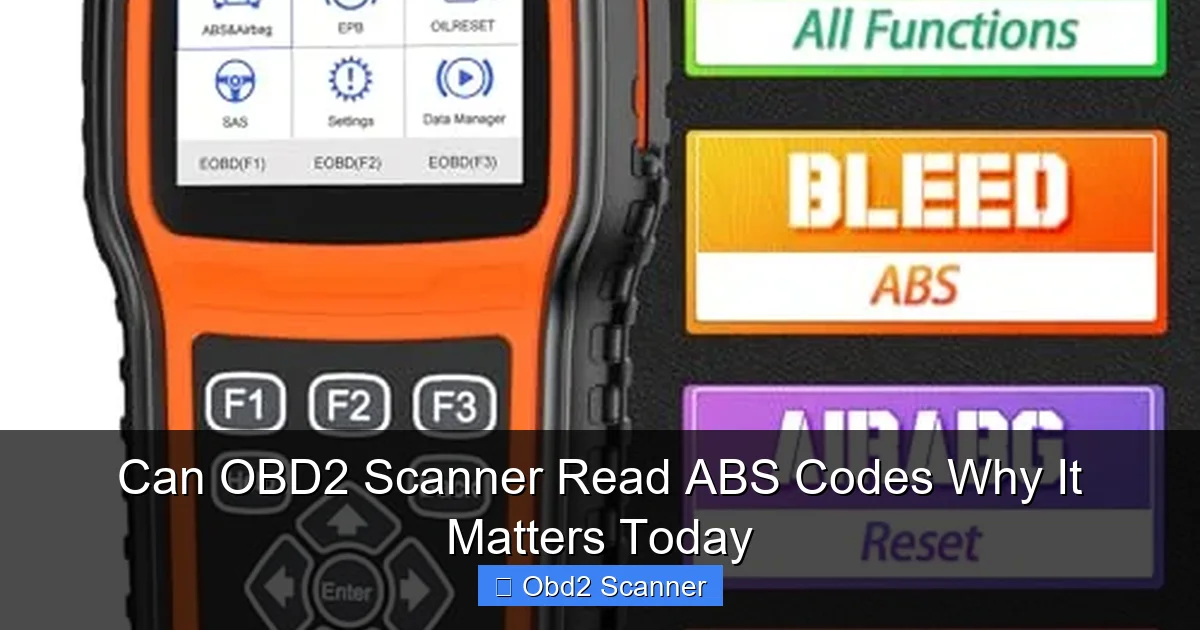

Not all scanners are equal. Basic OBD2 code readers focus on engine and emissions. Advanced scanners can talk to many systems. These include ABS, airbag, transmission, and more.

Visual guide about Can OBD2 Scanner Read ABS Codes Why It Matters Today

Image source: m.media-amazon.com

Basic vs. Advanced Scanners

Basic scanner: Reads P0xxx engine codes. Does not read ABS codes on many cars.

Advanced scanner: Reads manufacturer-specific codes. Can access ABS module. Shows live data and ABS-specific tests.

Compatibility Check

Before you buy or use a scanner, check compatibility. Look for ABS or electronic brake system support. Check vehicle make and model year. Some scanners list supported systems by car. If you ask, the seller can confirm support.

Step 2: Tools You Need

Gather the right tools. This keeps the job smooth.

• OBD2 scanner with ABS support (or a professional scan tool).
• Smartphone app and OBD2 Bluetooth adapter (for some tools).
• Basic hand tools to access wheel sensors.
• Multimeter for sensor and wiring checks.
• Vehicle repair manual or wiring diagrams, if possible.

Remember: A scanner alone may only give codes. A multimeter helps you test sensors and wiring. A manual helps you find connectors and pinouts.

Step 3: How to Scan for ABS Codes

Follow these simple steps. They show how to scan and find ABS trouble codes.

Step 3.1: Prepare the Vehicle

Park on level ground. Turn off the engine. Set the parking brake. Turn the ignition to ON but do not start the engine (or follow the scanner’s instructions).

Step 3.2: Locate the OBD2 Port

Find the OBD2 port under the dash. It is usually near the steering column. Plug your scanner into the port.

Step 3.3: Power Up the Scanner

Turn the ignition on if the scanner needs vehicle power. Wait for the scanner to boot and detect the vehicle’s protocols.

Step 3.4: Select ABS or Brake System

On the scanner, select the ABS or brake system menu. If your scanner uses an app, open the app and choose ABS.

Step 3.5: Read Codes and Live Data

Run the scan. The scanner will list ABS-related codes. Note them down. Also view live data. Look at wheel speed sensors and ABS module inputs. These help diagnose intermittent faults.

Step 4: How to Interpret ABS Codes

ABS codes look like Cxxxx or Uxxxx for many manufacturers. Some scanners show plain text descriptions.

Common ABS Code Examples

• Wheel speed sensor fault (often C0035–C0040 etc.).
• Hydraulic pump or motor fault.
• Valve or solenoid circuit faults.
• Communication errors between ABS module and ECU.

When you ask can obd2 scanner read abs codes, know that the code alone is a clue. It rarely tells the whole story. You must test sensors and circuits to confirm the cause.

Step 5: Test Wheel Speed Sensors

Wheel speed sensors are common culprits. They are cheap and fail often. Test them after you see a sensor code.

Step 5.1: Visual Inspection

Check the sensor and tone wheel for dirt, rust, or damage. Clean the area. Re-seat connectors.

Step 5.2: Resistance Test

Use a multimeter. Unplug the sensor. Measure resistance across the sensor terminals. Compare to the spec in your manual.

Step 5.3: AC Voltage Test

Spin the wheel. Set the multimeter to AC volts. A healthy sensor produces a small AC voltage as the wheel spins. No voltage means the sensor may be bad.

Step 6: Test Wiring and Connectors

Wiring problems cause many ABS faults. Check connectors and wiring harnesses near the wheels and ABS module.

Step 6.1: Wiggle Test

With key on and scanner live, wiggle wires and connectors. Watch live sensor data. If values jump or codes appear, you have a wiring or connector issue.

Step 6.2: Continuity and Shorts

Use a multimeter to check continuity. Look for shorts to ground or open circuits. Repair or replace damaged wiring.

Step 7: Test the ABS Module and Pump

If sensors and wiring are good, the ABS module or pump may be at fault. These parts are pricier. Test them before buying replacements.

Step 7.1: Module Communication

Use your scanner to confirm communications with the ABS module. If the module does not respond, the module or power/ground may be bad.

Step 7.2: Relay and Fuse Checks

Check fuses and relays for the ABS system. Replace any blown fuses. Swap relays with a known good one to test.

Step 7.3: Pump Operation Test

Some scanners can command the ABS pump or valves. Use that function to see if the pump runs. If it does not, you may have a failed pump or a wiring fault.

Step 8: Clear Codes and Confirm Repair

After repairs, clear codes with your scanner. Drive the car to check if codes return. If the ABS light stays off, the repair likely worked.

Step 8.1: Clear Codes

Select Clear Codes in the ABS menu. Follow prompts. Some codes come back until learning cycles complete. Drive the car for a test drive to verify.

Step 8.2: Road Test

Test in a safe area. Brake normally and under mild ABS activation conditions if safe to do so. Confirm the ABS light stays off and braking feels normal.

Practical Tips and Examples

Here are practical tips. They help you use a scanner and avoid mistakes.

• Tip: If you ask can obd2 scanner read abs codes, know your scanner’s limits. Read the manual first.
• Tip: Use live data. It often points to the bad wheel or the bad sensor.
• Tip: Replace sensors in pairs if one is old and the other is close to failure. This avoids repeat trips.
• Tip: Clean tone rings and sensors. Dirt and rust cause false readings.
• Tip: Keep a log of codes and the steps you take. This helps if you need a mechanic.

Troubleshooting Common Scenarios

This section solves common problems you face while asking can obd2 scanner read abs codes. Use it to speed up repairs.

Scenario 1: Scanner Shows No ABS Option

Problem: Your scanner does not list ABS. Solution: Use a more advanced scanner, or try a smartphone adapter and an app that supports ABS. Some older cars use proprietary protocols. You may need a dealer tool.

Scenario 2: Code Points to a Sensor but Sensor Tests OK

Problem: Code shows a wheel sensor fault. Sensor tests fine. Solution: Inspect wiring near suspension. Check connectors and grounding. Check tone ring for damage. Use live data to compare sensor readings at each wheel while moving the vehicle slowly.

Scenario 3: ABS Light Stays On After Clearing Codes

Problem: Codes cleared but light stays on. Solution: Some codes require a successful drive cycle to clear. Drive the vehicle. If the light stays on, re-scan to get fresh codes. The underlying fault likely persists.

Scenario 4: Intermittent ABS Faults

Problem: ABS light comes on intermittently. Solution: Check for loose connectors and wiring harness rubbing. Temperature and moisture can hide faults. Use the wiggle test and inspect for corrosion.

Scenario 5: Communication Errors with ABS Module

Problem: Scanner reports communication error with ABS module. Solution: Check power, ground, and CAN bus connections. A faulty module, blown fuse, or bad ground can stop communication. Repair or replace as needed.

When to See a Professional

Some ABS problems need a pro. See a mechanic if:

• ABS codes are present but you can’t find the cause.
• ABS pump or module tests fail. These parts can be complex to repair.
• There are multiple system errors across modules. This can show a broader electrical issue.
• You lack tools or safety equipment for brake work.

Professional shops have advanced scanners and experience. They can run deeper tests and perform repairs safely.

Common Misconceptions

Clear up these myths when thinking about can obd2 scanner read abs codes:

• Myth: All OBD2 scanners read ABS. Only some do.
• Myth: Clearing a code fixes the problem. Clearing only removes the code; it does not repair the fault.
• Myth: A new sensor always fixes the ABS light. The issue could be wiring or tone ring damage.

Safety and Legal Notes

ABS is a critical safety system. Do not drive with a known brake issue. If you are not comfortable doing brake repairs, contact a professional. Some vehicles require reprogramming after module replacement. Follow local laws and safety rules when doing repairs.

Conclusion

So, can obd2 scanner read abs codes? Yes, but with nuance. Many OBD2 scanners can read ABS codes. Some basic scanners cannot. The best approach is to use a scanner that supports ABS, or to use a smartphone adapter and app that supports the system. Read the codes, test sensors and wiring, and follow a systematic process to find the fault. Use live data where possible. Clear codes only after you fix the root cause. If the job is complex, visit a professional. With the right tool and a step-by-step method, you can diagnose and fix most ABS issues quickly and safely.
