Master how to read obd2 scanner and Diagnose Codes Fast

Master how to read obd2 scanner with this friendly, step-by-step guide. You will learn to plug in, read codes, view live data, clear faults, and use the results to diagnose issues fast. Practical tips and troubleshooting make it easy for beginners and DIYers.

Key Takeaways

• Point 1: You can learn how to read obd2 scanner easily by following clear steps to connect, scan, and interpret codes.
• Point 2: Codes are a starting point. Use live data and freeze frame to find the real issue.
• Point 3: Clearing codes is simple, but only clear after you fix the problem or you may lose useful info.
• Point 4: Basic P-codes point to systems. Use code lists and examples to decode common faults quickly.
• Point 5: If the check engine light returns, log codes, test parts, and seek a pro when needed.
• Point 6: Keep your scanner updated and your vehicle in a safe, flat spot before testing.

Introduction

This guide shows you how to read obd2 scanner step by step. You will learn the tools you need. You will learn how to plug in the scanner. You will learn how to read codes. You will learn how to use live data and clear codes. You will learn basic troubleshooting. The tone is simple and practical. The steps are short. You can follow this guide even if you are new to car repair.

What is an OBD2 Scanner?

An OBD2 scanner is a tool that reads data from your vehicle’s computer. It tells you why the check engine light is on. It shows trouble codes and live sensor data. Knowing how to read obd2 scanner results saves time and money. Most cars made after 1996 in the U.S. use OBD2. The scanner plugs into the vehicle’s OBD2 port. You then get codes and data on the scanner screen or phone app.

Tools and Prep: What You Need

Before you learn how to read obd2 scanner, gather the right tools. The list below covers the basics.

• OBD2 scanner (handheld or Bluetooth adapter)
• Smartphone or tablet (if using an app)
• Vehicle owner’s manual
• Pen and notebook or phone notes for logging codes
• Basic hand tools for simple fixes (screwdrivers, pliers)

Charge your phone and scanner. Park your car on level ground. Turn off the engine before you plug in. Read the scanner manual once. This prepares you to learn how to read obd2 scanner output safely and clearly.

Step 1: Find the OBD2 Port

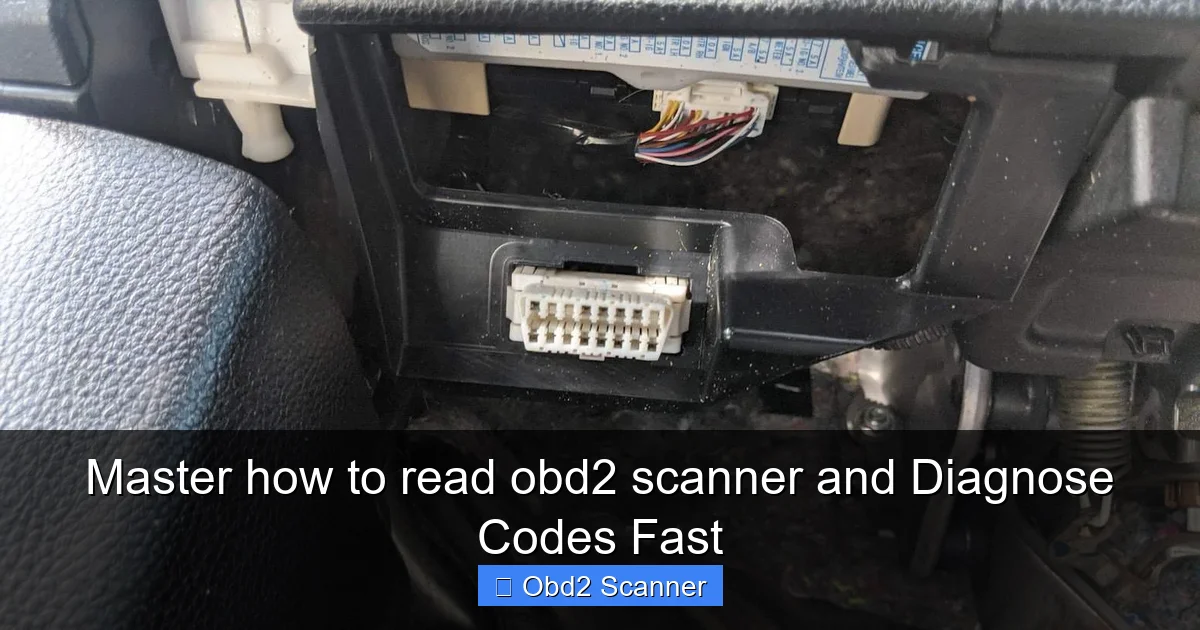

The OBD2 port is usually under the dash on the driver’s side. It may be near the steering column. In some cars it is behind a small cover. In some vans it is near the glove box. The port has 16 pins and is trapezoid shaped.

Tips

• Check under the dash, near the fuse box, or in the center console.
• Use a flashlight to spot the port.
• If you can’t find it, search online with your car model and year.

Step 2: Plug in the Scanner

Now you will learn how to read obd2 scanner by making a connection. Turn off the car. Plug the scanner plug into the OBD2 port. Make sure it fits snugly. If you use a Bluetooth adapter, plug it in and pair it with your phone.

Sub-steps for Bluetooth adapters

• Plug adapter into port.
• Turn car to the ON position (don’t start engine) if required.
• Open the app and pair to the adapter via Bluetooth.
• Allow any prompts to connect.

Step 3: Power Up and Access the Menu

Turn the ignition to ON if your scanner needs vehicle power. Some scanners power on when the car is on. On phone apps, open the app. Select the correct connection type. Choose your vehicle year and make if prompted. This sets up the scanner so you can read codes and data. Learning how to read obd2 scanner output starts here.

Step 4: Run a Scan for Trouble Codes

Use the scanner menu to run a full diagnostic scan. On many devices, choose “Read Codes” or “Scan.” Let the scanner communicate with the vehicle. This step reads stored codes, pending codes, and sometimes manufacturer codes. Write down each code. You will use them to diagnose the issue.

Code Types

• Stored codes: Active faults saved by the ECU.
• Pending codes: Detected but not yet confirmed.
• Manufacturer codes: Extra codes used by car makers.

Step 5: Interpret the Codes

Codes are short strings like P0302 or P0420. The first letter shows the system. “P” is powertrain. The next digits narrow the fault. Use a code list or your scanner’s built-in code help. This is a key skill when you learn how to read obd2 scanner results.

Common Code Examples

• P0302 — Cylinder 2 misfire. Check spark plug, coil, or injector.
• P0420 — Catalyst efficiency below threshold. Check oxygen sensors or catalytic converter.
• P0171 — System too lean. Check vacuum leaks or fuel delivery.
• P0505 — Idle control system malfunction. Check idle air control valve.

These examples show how a code points you in the right direction. A code does not always name the exact part that failed. It shows which system to test next.

Step 6: Use Live Data to Confirm

Live data helps you test parts in real time. Use the scanner to view sensor readings. Look at RPM, fuel trims, oxygen sensor voltages, and mass air flow. Live data can confirm a faulty sensor or part. This step is essential to learn how to read obd2 scanner info clearly.

How to check live data

• Open the live data or “Data Stream” screen on your scanner.
• Start the engine if required and let it idle.
• Watch values change as you rev the engine gently.
• Compare readings to normal ranges in your manual or online.

Step 7: Check Freeze Frame Data

Freeze frame data is a snapshot taken when a fault happened. It shows engine conditions like speed, temperature, and load. This helps you reproduce the problem. When you learn how to read obd2 scanner freeze frame data, you can test the car under similar conditions.

Step 8: Run Component Tests

Some scanners let you run active tests. You can command fuel injectors, coils, or idle control motors. Use these tests only if you know what you are doing. They help verify parts without removing them. Running component tests is an advanced step in how to read obd2 scanner output deeply.

Safety tip

• Keep hands clear of moving parts.
• Follow the scanner manual for active tests.

Step 9: Fix the Problem

Use the codes, live data, and tests to plan repairs. Replace faulty sensors. Tighten loose hoses. Clean MAF sensors and throttle bodies. Fix wiring issues and vacuum leaks. A correct fix depends on the data you get. Knowing how to read obd2 scanner data helps you pick the right repair.

Step 10: Clear Codes and Retest

After you fix the issue, clear the codes from the ECU. Use the “Clear Codes” or “Erase Codes” function. Then drive the car and watch for the check engine light. If the light returns, read codes again. Do not clear codes before you test repairs or you lose useful info. This is a key lesson in how to read obd2 scanner wisely.

Practical Tips and Examples

Below are quick tips to help you get consistent results.

• Always record codes before clearing them. You may need the original data later.
• Update scanner firmware and app software. This improves compatibility.
• If you see a P0300 random misfire, inspect spark plugs and ignition coils first.
• For P0420, test oxygen sensors first before replacing the catalytic converter.
• Use a simple checklist to rule out the easy causes first.

Example workflow: Scan > record codes > check live data > inspect parts > repair > clear > test drive. This flow shows how to read obd2 scanner output and use it to solve problems fast.

Troubleshooting Common Scanner Issues

Sometimes your scanner won’t connect or gives odd results. Here is how to fix common issues.

Scanner won’t power on

• Check the OBD2 port fuse. A blown fuse can cut power.
• Try a different vehicle to confirm the scanner works.

Scanner can’t communicate

• Ensure ignition is ON if required by the scanner.
• Try another app or device if using Bluetooth.
• Some older or non-OBD2 vehicles use different protocols. Check compatibility.

Codes are vague or not helpful

• Use live data and freeze frame to add context.
• Search the code with your vehicle model for known issues.

Check engine light returns after clearing

• Log the new code and compare to the old one.
• Pending codes may become stored after several drive cycles. Test drive and retest.
• Seek help if the same code returns after a well-documented repair.

Learning how to read obd2 scanner data helps you spot these patterns. Keep notes. Take photos of the scanner screen if needed. Good records speed up diagnosis.

When to See a Professional

Not all problems are DIY. See a mechanic if:

• The diagnosis needs engine disassembly.
• You lack tools or experience for safe testing.
• The issue involves airbags, brakes, or complex wiring.
• Codes point to expensive parts with no clear proof they are bad.

Your scan results will help the shop. Bring the code list and any notes. This saves time and labor costs.

Conclusion

Now you know the steps for how to read obd2 scanner and use the data to diagnose problems fast. Start by finding the port and connecting the scanner. Run a scan, read and record codes. Use live data and freeze frame to confirm faults. Repair the issue, clear codes, and retest. Keep the scanner updated. When in doubt, log your findings and ask a pro. With practice, you will read codes faster. You will make better repair decisions. You will save time and money. Happy diagnosing.
