How to Use OBD2 Scanner Bluetooth Like a Pro Step by Step

Learn to connect, read, and clear codes with an obd2 scanner bluetooth. This guide walks you step by step. Get live data, fix simple issues, and save time and money.

Key Takeaways

• Point 1: An obd2 scanner bluetooth plugs into the OBD-II port to read codes and data.
• Point 2: Pair the obd2 scanner bluetooth with a phone or tablet using the right app.
• Point 3: Read and interpret trouble codes, then research fixes before clearing them.
• Point 4: Use live data on the obd2 scanner bluetooth to spot sensor and performance issues.
• Point 5: Keep firmware and apps updated for the best obd2 scanner bluetooth performance.
• Point 6: Troubleshoot connection and power issues with simple checks.

How to Use OBD2 Scanner Bluetooth Like a Pro Step by Step

This guide shows you how to use an obd2 scanner bluetooth from setup to pro tips. You will learn how to connect the adapter. You will learn how to read codes. You will learn how to view live data. You will learn how to clear codes safely. You will also get troubleshooting tips and real examples.

What is an obd2 scanner bluetooth?

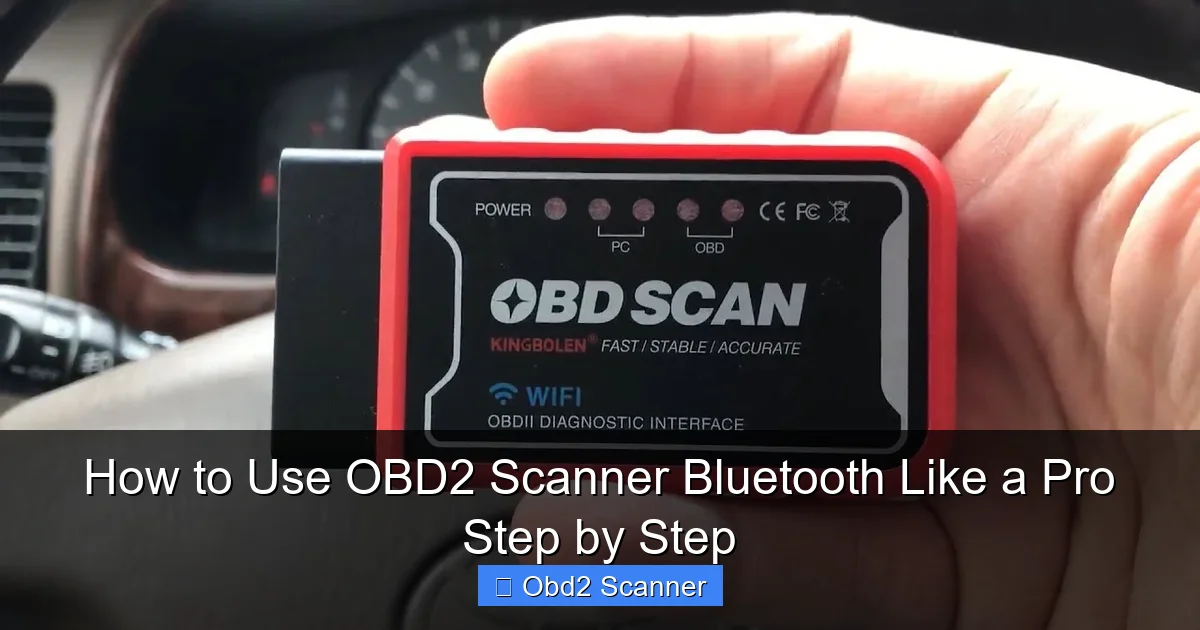

An obd2 scanner bluetooth is a small adapter. It plugs into your car’s OBD-II port. It uses Bluetooth to send data to your phone or tablet. You use an app to read codes and data. The tool works on most cars made after 1996 in the US. It helps you diagnose engine and emission problems fast.

Before you start: What you need

Gather a few things first. This saves time and avoids confusion.

• OBD-II Bluetooth adapter (your obd2 scanner bluetooth)
• Phone or tablet with Bluetooth
• OBD app (paid or free)
• Your vehicle’s manual or a code reference
• Charged phone battery

Step 1: Locate the OBD-II port

The first step is to find the port. Most cars have the port under the dashboard. It is often near the steering column. In some cars it is in the center console. If you are not sure, check the owner’s manual. Some ports have a cover. Remove the cover to access the port.

Tip

Look for a trapezoid-shaped connector. It has 16 pins. The shape is unique. If you see it, you found the OBD-II port.

Step 2: Plug in your obd2 scanner bluetooth

Turn off the car first. Plug the adapter into the port firmly. Some adapters have a light. The light may blink when it has power. In many cars the adapter gets power even with the ignition off. In others you need to switch the key on. Check the light or indicator to confirm power.

Tip

Wiggle the adapter slightly if it does not seat squarely. Do not force it. A tilted connection can cause poor performance.

Step 3: Choose and install an app

Pick a compatible app for your phone. Popular apps include Torque, OBD Auto Doctor, Car Scanner, and BlueDriver. Some apps work on both iOS and Android. Others are Android-only if the adapter uses classic Bluetooth. Read app reviews for your needs. Install the app before pairing the adapter.

Android vs iOS

Most cheap adapters use classic Bluetooth. Classic Bluetooth works well with Android. iPhones often need Bluetooth Low Energy (BLE) adapters. If you use iPhone, buy a BLE obd2 scanner bluetooth or check app compatibility.

Step 4: Pair the obd2 scanner bluetooth with your device

Turn on Bluetooth on your phone. Open your phone’s Bluetooth settings. Look for the adapter in the device list. Common names include ELM327, OBDII, or the brand name. Select it to pair. Some adapters need a PIN. Common PINs are 1234 or 0000. Enter the PIN if prompted.

App pairing

Some apps pair directly inside the app. Open the app and go to settings. Choose Bluetooth or ELM327 connection. Select your adapter from the list. Press connect. The app will confirm when the adapter is linked.

Troubleshooting pairing

• Restart Bluetooth if the adapter does not appear.
• Unplug and replug the adapter.
• Try a different PIN (1234, 0000).
• Restart your phone and try again.

Step 5: Start the app and connect

Open your chosen app. Grant any permissions the app asks for. These may include location and storage. Location permission can be required for Bluetooth scanning on some phones. Go to the app’s connection screen. Choose the linked obd2 scanner bluetooth. Tap connect. Wait for the app to say it is connected.

What to expect

The app may show vehicle info. It may read your VIN or ECU type. You will often see a status bar for connection and data flow. If the app cannot connect, check the adapter light and Bluetooth pairing.\n

Step 6: Read trouble codes

One main job of an obd2 scanner bluetooth is reading codes. These are Diagnostic Trouble Codes (DTCs). Inside the app, find the menu for “Read Codes” or “DTC”. Tap to pull codes. The app will retrieve stored and pending codes. Each code looks like P0XXX or P1XXX. The app often shows a short description.

How to interpret codes

Read the code description. Use a reliable code database for details. Not all code descriptions point to a single part. Some codes need more testing. Treat codes as clues, not proof. Research the code before replacing parts.

Example

Code P0302 means misfire on cylinder two. It does not tell you why. You still need to check spark, fuel, and compression for cylinder two.

Step 7: View live data and freeze frame

Live data is real-time sensor information. Many apps let you view RPM, speed, coolant temp, oxygen sensor, and more. Use live data to spot issues that occur while driving. Freeze frame shows data at the moment a code set. This helps you see the conditions that triggered a fault.

Pro tip

Use graphs when possible. Graphs make trends easy to see. Compare expected values with measured ones. This helps find faulty sensors or timing issues.

Step 8: Run live tests and mode 6

Higher-end apps let you run tests and read mode 6 data. Mode 6 shows sensor self-tests. It is advanced data used by pros. If your app supports it, read mode 6 for deeper diagnosis. Only use mode 6 if you know how to interpret it or have a reference guide.

Step 9: Clear codes safely

Your obd2 scanner bluetooth can clear codes. Do not clear codes blindly. Clearing codes erases stored data. This can hide problems from mechanics. Use Clear Codes only after you fix the issue or for testing. Clear the codes and then drive a test route to see if the code returns.

When not to clear codes

• If you plan to take the car to a shop.
• If you need freeze frame data for diagnosis.
• If emissions testing is due soon.

Step 10: Use the tool for routine checks

Use your obd2 scanner bluetooth for regular checks. Scan before a trip. Look for pending codes. Check coolant temp and battery voltage. Use live data while warming the engine. This helps you catch issues early and avoid breakdowns.

Fuel economy and performance

Track fuel trims and oxygen sensors. These affect fuel economy. Small changes can point to a gradual issue. The obd2 scanner bluetooth helps you log and compare data over time.

Maintenance and updates

Keep the adapter firmware updated when possible. Some brands offer firmware updates via app. Keep your phone app updated too. Clean the OBD port if contacts look dirty. Inspect the adapter for damage. Store it in a safe place when not in use.

Battery drain

Some adapters draw power all the time. If you see battery drain, unplug the adapter when the car is off. Check adapter specs for parasitic draw. Many modern adapters use very little power, but it varies.

Troubleshooting common issues

Here are common problems and fixes when using an obd2 scanner bluetooth.

No power to the adapter

• Check that the car battery is good.
• Try another OBD port if your vehicle has multiple ports.
• Check for a blown fuse in the OBD power circuit.

Adapter not pairing

• Make sure Bluetooth is on in your phone.
• Forget the device in Bluetooth settings and re-pair.
• Try another phone to isolate the problem.
• Use the correct PIN (1234 or 0000).

App shows no data

• Ensure the app is set to use the obd2 scanner bluetooth connection.
• Check for app permissions like location or storage.
• Restart the app and reconnect.
• Try a different app to confirm adapter function.

Wrong or unclear codes

• Clear codes only after you document them.
• Use live data to verify the issue.
• Do a visual and basic mechanical check before replacing parts.

Bluetooth drops while driving

• Secure the phone so it stays within range of the obd2 scanner bluetooth.
• Keep the adapter clear of obstructions if possible.
• Try a different app or update the app and firmware.

Practical examples and scenarios

Here are simple uses that show the power of an obd2 scanner bluetooth.

Example 1: Check engine light on

Step 1: Plug in the obd2 scanner bluetooth. Step 2: Pair with your phone. Step 3: Read codes in the app. Step 4: Note the code and do online research. Step 5: Fix the likely cause. Step 6: Clear the code and test drive. This sequence saves diagnostic time and cost.

Example 2: Poor fuel economy

Use the obd2 scanner bluetooth to view fuel trims and oxygen sensors. Look for long term fuel trim values out of range. This points to vacuum leaks or injector issues. You can spot the problem early and fix it before it gets worse.

Example 3: Intermittent misfire

Use live data to watch misfire counters and oxygen sensors. A misfire on one cylinder may show spikes in the misfire count. Use freeze frame to see RPM and load when the misfire happens. This helps narrow the cause to spark, fuel, or compression.

Safety tips

• Do not use the app while driving. Pull over to view live data or codes.
• Keep the OBD adapter secure. A loose adapter can fall and distract you.
• Use a phone mount if you plan to watch data while someone else drives.
• Know your limits. Complex repairs need a mechanic.

Buying guide quick notes

When you buy an obd2 scanner bluetooth, look for these features:

• Compatibility with your phone (Android/iOS)
• Supported protocols for your car
• Good app reviews and updates
• Low power draw when idle
• Known brand or good customer support

Advanced tips for power users

For deeper diagnostics, use the obd2 scanner bluetooth with a tablet. A larger screen makes graphs easier to read. Log data and save it. Share logs with a mechanic. Use custom PID support in apps to add manufacturer-specific sensors. If you do regular work, invest in a high-quality adapter and paid app. They give more features and stability.

Conclusion

An obd2 scanner bluetooth is a simple tool that gives big value. You can read and clear codes. You can view live data and run tests. You can fix small problems and save money. Follow the steps in this guide. Keep safety and documentation in mind. With practice, you will use the obd2 scanner bluetooth like a pro.
