What Is OBD2 Scanner Explained for Every Car Owner

What Is OBD2 Scanner Explained for Every Car Owner shows you how to use an OBD2 scanner to read and clear car faults. This guide covers steps, tips, examples, and troubleshooting in simple language.

Key Takeaways

• Point 1: An OBD2 scanner reads your car’s computer and shows trouble codes.
• Point 2: You can use an OBD2 scanner to diagnose many check-engine lights fast.
• Point 3: Many scanners plug into the OBD2 port and work with phones or have built-in screens.
• Point 4: Basic steps: plug in, turn key, read codes, research, fix, and clear codes.
• Point 5: Some faults are simple to fix; others need a mechanic even after using an OBD2 scanner.
• Point 6: Regular scans help catch small problems early and save money over time.

Introduction: What you will learn

This guide explains what an OBD2 scanner is. It shows how to use one step by step. You will learn how to read codes, interpret them, and clear codes. You will see practical tips and real examples. You will also get troubleshooting help. By the end, you will feel confident using an OBD2 scanner on your car.

What is an OBD2 scanner?

An OBD2 scanner is a tool. It plugs into your car’s OBD2 port. The car’s computer speaks to the scanner. The scanner reads trouble codes. These codes tell you what went wrong. The scanner can also show live data. This helps you see how the engine runs in real time.

Why you might need an OBD2 scanner

A check-engine light turns on. Your car runs rough. The fuel economy drops. You want to check before you pay a shop. An OBD2 scanner helps in all these cases. It often tells you the exact part or system with trouble.

Types of OBD2 scanners

There are many types. Each type fits different needs.

• Basic code readers. These read and clear codes. They are cheap and simple.

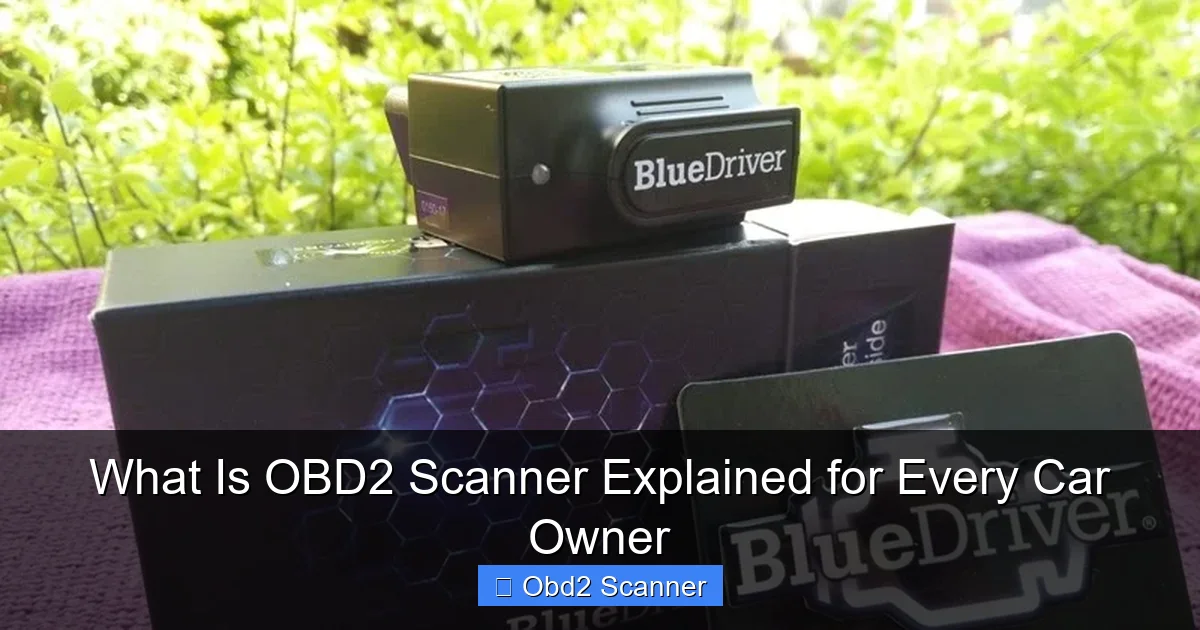

• Bluetooth or Wi‑Fi adapters. These work with a phone app. They are portable and powerful.
• Handheld scanners. They have a built-in screen. They offer more features than basic readers.
• Advanced scan tools. These show live data, graphing, and advanced tests. They are for pros.

How to choose the right OBD2 scanner

Match the scanner to your needs. If you want quick answers, choose a basic reader. If you want more detail, pick a Bluetooth adapter or a mid-range handheld. For deep diagnostics choose an advanced tool.

Key features to look for

• Compatibility with your car’s make and year.
• Live data and freeze frame support.
• Code definitions and built-in help.
• Clear codes and turn off the check-engine light.
• Customer reviews and warranty.

Step-by-step: How to use an OBD2 scanner

Follow these steps to scan a car with an OBD2 scanner. Each step is short. Read one step at a time. This will keep things simple.

Step 1: Locate the OBD2 port

The OBD2 port sits under the dash. It is near the steering column on most cars. Some cars hide it behind a cover. It is a 16-pin connector. It looks like a trapezoid. If you cannot find it, check your owner’s manual. You can also search online for your car model.

Step 2: Plug in the OBD2 scanner

Turn off the car. Plug the scanner into the OBD2 port. Make sure the connection is firm. Some adapters have a small light that shows power. If the scanner has a cable, plug it in securely. For Bluetooth adapters, plug it in and wait for its indicator light.

Step 3: Turn the ignition on

Turn the key to the ON position. Do not start the engine unless the instructions ask you to. For push-button start cars, press the button without starting. The car’s computer will power up. The scanner will also power on.

Step 4: Pair or boot the scanner

If you use a phone app, open it and pair with the OBD2 scanner. Follow the app prompts. Enter any codes or passwords if needed. Handheld scanners will boot and show a menu. Choose the correct protocol or let it auto-detect.

Step 5: Read trouble codes

Select “Read Codes” in the scanner menu. The scanner will list one or more codes. Each code looks like P0xxx or P1xxx. These are standard OBD2 codes. Write them down or take a photo. Some apps also show code descriptions.

Step 6: Check live data

Open the live data menu. Look at key sensors. Check engine RPM, coolant temp, oxygen sensor readings, and fuel trim. For a rough idle, RPM should be steady. Temperatures should be within normal range. Live data helps you see if a sensor behaves oddly.

Step 7: Research the codes

Use a code database or the scanner’s built-in info. Simple codes like a loose gas cap have easy fixes. More complex codes like misfires may need tests. Search for your exact code plus your car model. Look for common causes and fixes.

Step 8: Fix the issue

Try basic fixes first. Tighten the gas cap. Replace a burnt-out sensor if it is cheap. For complex issues, get help from a mechanic. Keep a record of what you did. This helps if the problem returns.

Step 9: Clear codes and retest

After a fix, choose “Clear Codes” or “Erase Codes.” This will reset the check-engine light. Drive the car through a short test route. See if the light returns. If it does, scan again to see new or returning codes.

Practical tips and real examples

Here are tips you can use every day. They are based on common cases.

Tip 1: Start with the simplest fixes

Many check-engine lights are caused by small issues. A loose gas cap is common. It triggers an evaporation system code. Fixing small items can clear the light quickly. This saves money.

Tip 2: Use freeze frame data

Freeze frame shows the conditions when the code appeared. It tells you speed, RPM, and temp at the time. This helps narrow causes. For instance, a high temp during a code points to cooling issues.

Tip 3: Compare live data to specs

Use a repair manual or online specs. Compare sensor readings to expected values. If the oxygen sensor voltage is stuck, it may mean a bad sensor. Live data makes diagnosis faster.

Example: P0420 catalytic efficiency

If your scanner shows P0420, it means low catalytic converter efficiency. This may be due to a failing converter or a bad oxygen sensor. Use live data to check upstream and downstream oxygen sensors. If one sensor reads wrong, replace it first. If sensors are good, the converter may be the issue.

Example: P0302 cylinder misfire

P0302 means cylinder 2 misfire. Check spark plugs and ignition coils. Swap the coil with another cylinder. If the misfire moves, the coil is bad. If it stays, the issue may be the injector or compression problem.

Troubleshooting common scanner issues

Sometimes things do not go as planned. Here are fixes for common problems with an OBD2 scanner.

Problem: Scanner does not power on

Check the car ignition. Ensure the key is in the ON position. Check the port for debris. Try another car to see if the scanner is faulty. If still dead, the scanner may need service or replacement.

Problem: No codes but the engine light is on

Some lights are from non-OBD systems. Or the code may be pending. Use the scanner to check pending codes. Drive the car through the required cycles and scan again.

Problem: Codes don’t match symptoms

Codes point to systems, not always root causes. Use live data and visual checks. For example, a mass air flow code may be due to vacuum leaks or dirty connectors. Inspect hoses and wiring.

Problem: Bluetooth adapter won’t pair

Turn off Wi‑Fi and other Bluetooth devices that may interfere. Restart the phone and the adapter. Use the correct PIN if required. Update the app and adapter firmware if possible.

Problem: Persistent check-engine light after clearing

The issue may not be fixed. Re-scan to see new codes. Some problems need drive cycles to clear. If the light returns quickly, stop driving and seek professional help.

Maintenance and best practices

Use a scanner regularly. Scan after repairs. Keep app and firmware updated. Store your scanner in a dry place. Clean the OBD2 port if dusty. Keep a log of codes and fixes for future reference.

When to visit a mechanic

If the problem is complex, see a pro. If a safety issue appears, stop driving. Engine misfire at high speed, brake issues, or transmission faults need immediate service. Use your OBD2 scanner to give the mechanic a head start.

Cost and value

Basic code readers cost little. Bluetooth adapters are affordable and powerful. Professional scan tools cost more. Even a cheap OBD2 scanner is valuable. It saves money on simple diagnostics. It helps you talk to your mechanic with facts.

Legal and warranty notes

Clearing codes can hide problems during emissions checks. If your car is under warranty, check before repairs. Recording codes helps document recurring faults. Do not disconnect sensors or cut wires to bypass emissions rules.

Conclusion: Take control with an OBD2 scanner

An OBD2 scanner puts knowledge in your hands. It helps you find car problems fast. The tool is easy to use. It saves time and money. Start with a basic scanner. Learn live data and code meanings. For tough issues, use the scanner to guide a professional. Regular scanning helps you spot small issues before they grow. With these steps, tips, and examples you can use an OBD2 scanner with confidence.
